Electric Pull-Out Units

CE-marked electric/battery-powered Pull-out units for loads up to 1000 kg/unit. With automatic operation, no muscle strength is needed to pull out or push in the pull-out unit. Optimum and ergonomic handling of heavier loads.

We have extensive experience in designing and manufacturing pull-out units, and we are proud to say that our units have good functionality, a long lifespan and a highly detailed finish. Development, design and production are all done in-house, enabling us to adapt and develop units to every wish.

Our electric/battery-powered Pull-out units are available as beam, upright or floor models. The control unit can be placed on the front, attached to a post or placed on a handle bracket on the front of the unit.

The units have a solid design, and can be adapted to the type of goods applying practical and functional accessories.

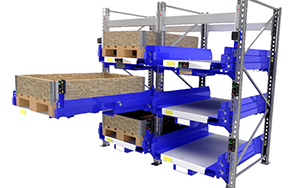

Electric POU for upright installation

Model: UEKD-16690.V2
Day opening: 950mm. P90 - 1037 / 1100mm
Maximum spread load: 1000 kg
Pull-out capacity: 1150 mm (100% access)
Load area: 830x1240 mm (b*d)
Construction height: 145 mm
Protrusion, front post: 150 mm
Approx. 9 seconds output / input (automatic with stop function)
Detection protective stop: intelligent control of moments for collision
The unit can be offered with two different forms of power supply:
- Battery operation 12 V. Can handle 400 cycles on full charge
  Stanby time: 14 days
- Power 230 VAC with plug

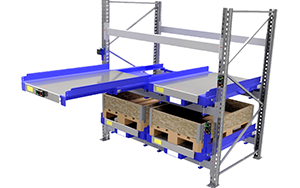

Electric POU for beam installation

Model: UEKD-16606
Maximum spread load: 1000 kg
Pull-out capacity: 1150 mm (100% access)
Load area: 840x1240 mm (b*d)
Construction height above support beam: 140 mm
Protrusion, front beam: 162 mm
Total width: 870 mm
Beam width 50 mm. Dimensions ext. beam: 1100 mm
Approx. 9 seconds output / input (automatic with stop function)
Detection protective stop: intelligent control of moments for collision
The unit can be offered with two different forms of power supply:
- Battery operation 12 V. Can handle 400 cycles on full charge
  Stanby time: 14 days
- Power 230 VAC with plug

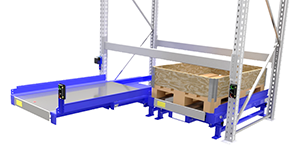

Electric POU floor model

Model: UEKD-16606.G
Maximum spread load: 1000 kg
Pull-out capacity: 1150 mm (100% access)
Load area: 840x1240 mm (b*d)
Construction height: 282 mm, clearance: 110 mm
Total width: 870 mm
Approx. 9 seconds output / input (automatic with stop function)
Detection protective stop: intelligent control of moments for collision.
The unit can be offered with two different forms of power supply:
- Battery operation 12 V. Can handle 400 cycles on full charge.
  Stanby time: 14 days
- Power 230 VAC with plug

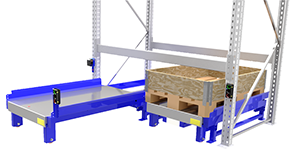

Electric POU floor model, with supporting wheels

Model: UEKD-16674.V2
Support wheels in front of the unit
Maximum spread load: 1000 kg
Pull-out capacity: 1100 mm (100% access)
Load area: 830x1240 mm (b*d)
Construction height: 272 mm, clearance: 110 mm
Total width: 865 mm
Approx. 9 seconds output / input (automatic with stop function)
Detection protective stop: intelligent control of moments for collision.
The unit can be offered with two different forms of power supply:
- Battery operation 12 V. Can handle 400 cycles on full charge
  Stanby time: 14 days
- Power 230 VAC with plug
