Manual units for floor / beam installation

Universal units for installation on supporting beams in pallet racks or directly on the floor.

Provide maximal ergonomic handling of your picked stock, as the load surface is easily accessible from three sides, which reduces the load on axles and backs.
Provide financial benefits as the number of picking locations can be increased as a minimum of clearance is required to the supporting beam above.
A large number of models to cover most needs with regard to use, loads and pull-out capacity.

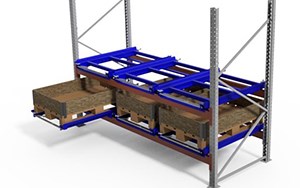

Basis model with 65 to 70% pull out capacity

Load capacity: 300 to 1000 kg
Pull out capacity: 410 - 840 mm
Unit dimensions (WxD): 830 x 1240 mm, 1230 x 900 mm, 1030 x 1240 mm
Unit height: 85 mm
Total width: 880 - 1280 mm

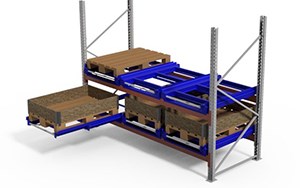

Model with 100% pull out capacity

Load capacity: 300 - 1000 kg
Pull out capacity: 840 - 1200 mm
Unit dimensions (WxD): 830 x 1240 mm, 1230 x 900 mm
Unit height: 100 - 120 mm
Total width: 875 - 1280 mm

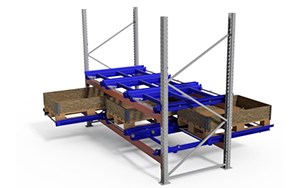

Basis model with 2 way pull out, 65 to 70% pull out capacity

Load capacity: 600 kg
Pull out capacity: 830 - 750 mm
Unit dimensions (WxD) 830 x 1240 mm, 1230 x 900 mm
Unit height: 95 mm
Total width: 885 - 1285 mm

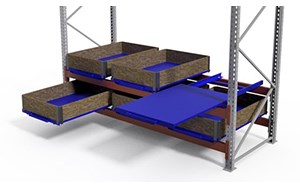

Model with shelf, 70 to 100 % pull out capacity

Load capacity: 200 - 300 kg
Pull out capacity: 570 - 1200 mm
Unit dimensions (WxD): 800 x 1200 mm, 1200 x 800 mm
Unit height: 70 - 75 mm
Total width: 800 - 1200 mm

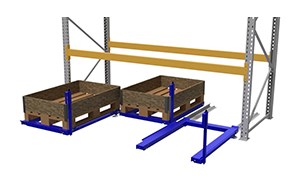

Low built model for floor installation

Lockable handle on right side
Load capacity: 1000 kg
Pull out capacity: 1100 mm
Unit dimensions (WxD): 800 x 1200 mm
Unit height: 70 mm
Total width: 840 mm

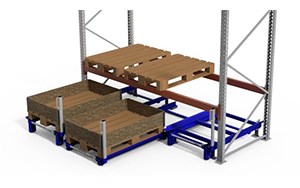

Model with wheels for floor installation

Supporting wheels at front of POU
Handle at right side
Load capacity: 1000 kg
Pull out capacity: 720 - 1120 mm
Unit dimensions (WxD): 830 x 1240 mm, 1230 x 840 mm
Unit height (floor to unit): 115 - 215 mm
Total width: 880 - 1280 mm
