Flexible, stand-alone Compact modules with pull-out shelf/supporting levels for effective small goods storage.

Available in several designs in terms of loads and pull-out capacity. Can be fitted with supporting wheels for mobile solution.

The modules consist of a base in galvanised steel profiles in which are installed pull-out trays. As a standard, the modules are bolted to the floor with expansion-shell bolts. More modules can be placed next to each other, and the narrow width of 880 mm allows more units to be installed in the clearance of the pallet racking. The units can be equipped with a locking system ensuring that only one pull-out tray is pulled out at a time.

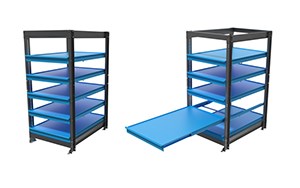

Compact module CML-70

  • Available in 3 models with each 4, 5 or pull out shelves
  • Max load / shelf: 200 kg (evenly distributed load)
  • Max last / single module: 1200 kg
  • Shelf dimensions: 800 x 1200 mm
  • Pull out capacity: 820 mm (70%)

Compact module CML-100

  • Available in 3 models with each 4, 5 or pull out shelves
  • Max load / shelf: 150 kg (evenly distributed load)
  • Max last / single module: 1200 kg
  • Shelf dimensions: 800 x 1200 mm
  • Pull out capacity: 1185 mm (100%)

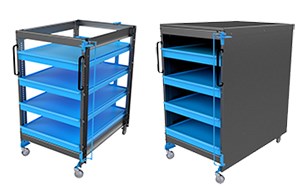

Compact module CML-ME

  • Available in 3 models with each 4, 5 or pull out shelves
  • Equipped with 2 fixed wheels at the back, and 2 turnable wheels with brake at the front. Wheel diameter: 100 mm
  • Transport lock at the front
  • Max load / shelf: 150 kg
  • Height, wheels included: 1550 mm
  • Shelf dimensions: 800 x 1200 mm
  • Pull out capacity: 1185 mm (100%)
  • Available as open or cladded version
