Manual units for upright installation

Pull-out units with very low building height for installation direct onto the uprights.

Our Pull-out units installed on uprights, are equipped with lateral-support ball bearings and are also available with lateral-stabilising beams, which means that the units can be installed without requiring external supporting beams.

  • Financial benefits can be obtained as the number of picking locations can be increased due to the units’ low construction height (more stacked pull-out units compared with beam-installed units).
  • Provide maximum ergonomic picking, as the load surface is easily accessible from three sides, which reduces the load on axles and backs.
  • A large selection of models to cover most needs with regard to use, loads and pull-out capacity.

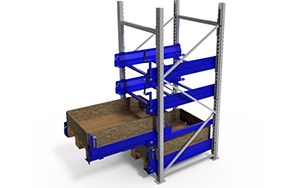

Upright model with 62 to 70% pull out capacity

  • Load capacity: 700 - 1000 kg
  • Pull out capacity: 675 - 840 mm
  • Unit dimensions (WxD): 840 x 1240 mm, 1240 x 960 mm
  • Unit height: 25 mm
  • Clearance: 950 - 1350 mm
  • Frame depth: 1037 - 1100 mm, 737 - 800 mm

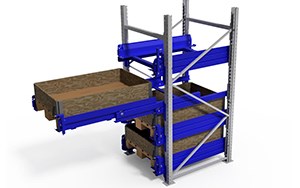

Upright model with 100% pull out capacity

  • Load capacity: 500 - 1000 kg
  • Pull out capacity: 840 - 1200 mm
  • Unit dimensions (WxD): 830 x 1240 mm, 1230 x 960 mm
  • Unit height: 60 mm
  • Clearance: 950 - 1350 mm
  • Frame depth: 1037 - 1100 mm, 737 - 800 mm

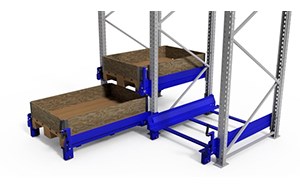

Upright model with supporting wheels for floor installation

  • Load capacity: 1000 kg
  • Pull out capacity: 840 - 1120 mm
  • Unit dimensions (WxD): 840 x 1240 mm, 1240 x 960 mm
  • Unit height: 140 mm
  • Clearance: 950 - 1350 mm
  • Frame depth: 1037 - 1100 mm, 737 - 800 mm

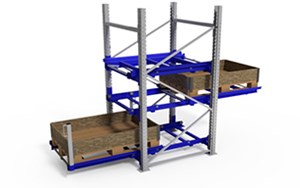

Upright installation with 2way pull out

  • Load capacity: 600 - 800 kg
  • Pull out capacity: 550 - 830 mm
  • Unit dimensions (WxD): 830 x 1240 mm, 1230 x 900 mm
  • Unit height: 95 mm
  • Total width: 885 - 1285 mm
  • Dimensions outside supporting beam: 700 - 800 mm, 941 - 1139 mm

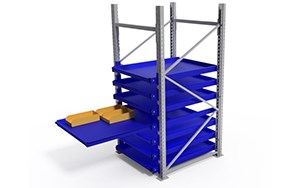

Pull out tray with edges, installed on upright

  • Load capacity: 200 kg
  • Pull out capacity: 880 mm
  • Unit dimensions (WxD): 865 x 1200 mm
  • Unit height: 6 mm
  • Clearance: 950 mm
  • Frame depth: 1037 - 100 mm

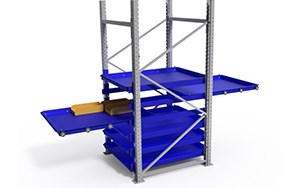

Pull out tray with edges for 2way pull out, upright installation

  • Load capacity: 200 kg
  • Pull out capacity: 850/850 mm
  • Unit dimensions (BxD): 865 x 1195 mm
  • Unit height: 6 mm
  • Clearance: 950 mm
  • Frame depth: 1037 - 1100 mm

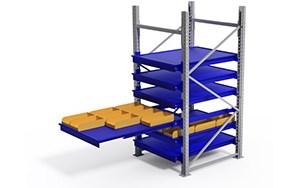

Pull out shelf with 100% pull out, upright installation

  • Load capacity: 200 kg
  • Pull out capacity: 1200 mm
  • Unit dimensions (WxD): 805 x 1200 mm
  • Unit height: 73 mm
  • Clearance: 950 mm
  • Frame depth: 1037 - 1100 mm

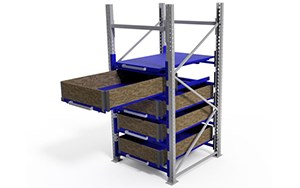

Pull out shelf with integrated beams, upright installation

  • Designed to fit pallkrage
  • Load capacity: 300 kg
  • Pull out capacity: 840 mm
  • Unit dimensions (WxD): 800 x 1200 mm
  • Unit height: 100 mm
  • Clearance: 950 mm
  • Frame depth: 900 - 1100 mm
